July 2018 New Cisco CCNA 200-125 Dumps Exam Questions And Answers (Q1-Q15)
QUESTION 1
Refer to the graphic.
A static route to the 10.5.6.0/24 network is to be configured on the HFD router. Which commands will accomplish this? (Choose two.)
A. HFD(config)# ip route 10.5.6.0 0.0.0.255 fa0/0
B. HFD(config)# ip route 10.5.6.0 0.0.0.255 10.5.4.6
C. HFD(config)# ip route 10.5.6.0 255.255.255.0 fa0/0
D. HFD(config)# ip route 10.5.6.0 255.255.255.0 10.5.4.6
E. HFD(config)# ip route 10.5.4.6 0.0.0.255 10.5.6.0
F. HFD(config)# ip route 10.5.4.6 255.255.255.0 10.5.6.0
Correct Answer: CD
Explanation:
The simple syntax of static route:
ip route destination-network-address subnet-mask {next-hop-IP-address | exit-interface} + destination-network-address: destination network address of the remote network + subnet mask: subnet mask of the destination network + next-hopIP-address: the IP address of the receiving interface on the next-hop router + exit-interface: the local interface of this router where the packets will go out In the statement “ip route 10.5.6.0 255.255.255.0 fa0/0:
+ 10.5.6.0 255.255.255.0: the destination network
+fa0/0: the exit-interface
QUESTION 2
Refer to the exhibit.
What is the effect of the configuration that is shown?
A. It configures SSH globally for all logins.
B. It tells the router or switch to try to establish an SSh connection first and if that fails to use Telnet.
C. It configures the virtual terminal lines with the password 030752180500.
D. It configures a Cisco network device to use the SSH protocol on incoming communications via the virtual terminal ports.
E. It allows seven failed login attempts before the VTY lines are temporarily shutdown.
Correct Answer: D
Explanation:
Secure Shell (SSH) is a protocol which provides a secure remote access connection to network devices. Communication between the client and server is encrypted in both SSH version 1 and SSH version 2. If you want to prevent non-SSH connections, add the “transport input ssh” command under the lines to limit the router to SSH connections only. 200-125 dumps
Straight (non-SSH) Telnets are refused.
QUESTION 3
Which three elements must be used when you configure a router interface for VLAN trunking? (Choose three.)
A. one physical interface for each subinterface
B. one IP network or subnetwork for each subinterface
C. a management domain for each subinterface
D. subinterface encapsulation identifiers that match VLAN tags
E. one subinterface per VLAN
F. subinterface numbering that matches VLAN tags
Correct Answer: BDE
Explanation:
This scenario is commonly called a router on a stick.
QUESTION 4
Refer to the exhibit.
What can be determined about the router from the console output?
A. No configuration file was found in NVRAM.
B. No configuration file was found in flash.
C. No configuration file was found in the PCMCIA card.
D. Configuration file is normal and will load in 15 seconds.
Correct Answer: A
Explanation:
When no startup configuration file is found in NVRAM, the System Configuration Dialog will appear to ask if we want to enter the initial configuration dialog or not.
QUESTION 5
What information does a router running a link-state protocol use to build and maintain its topological database? (Choose two.)
A. hello packets
B. SAP messages sent by other routers
C. LSAs from other routers
D. beacons received on point-to-point links
E. routing tables received from other link-state routers
F. TTL packets from designated routers
Correct Answer: AC
Explanation:
Neighbor discovery is the first step in getting a link state environment up and running. In keeping with the friendly neighbor terminology, a Hello protocol is used for this step. The protocol will define a Hello packet format and a procedure for exchanging the packets and processing the information the packets contain.
After the adjacencies are established, the routers may begin sending out LSAs. As the term flooding implies, the advertisements are sent to every neighbor. In turn, each received LSA is copied and forwarded to every neighbor except the one that sent the LSA.
QUESTION 6
Refer to the exhibit.
The technician wants to upload a new IOS in the router while keeping the existing IOS. What is the maximum size of an IOS file that could be loaded if the original IOS is also kept in flash?
A. 3 MB
B. 4 MB
C. 5 MB
D. 7 MB
E. 8 MB
Correct Answer: B
Explanation:
In this example, there are a total of 8 MB, but 3.8 are being used already, so another file as large as 4MB can be loaded in addition to the original file.
QUESTION 7
Which command displays CPU utilization?
A. show protocols
B. show process
C. show system
D. show version
Correct Answer: B
Explanation:
The “show process” (in fact, the full command is “show processes”) command gives us lots of information about each process but in fact it is not easy to read. Below shows the output of this command (some next pages are omitted).
A more friendly way to check the CPU utilization is the command “show processes cpu history”, in which the total CPU usage on the router over a period of time: one minute, one hour, and 72 hours are clearly shown:
+ The Y-axis of the graph is the CPU utilization.
+ The X-axis of the graph is the increment within the period displayed in the graph. For example, from the last graph (last 72 hours) we learn that the highest CPU utilization within 72 hours is 37% about six hours ago.
QUESTION 8
A router has learned three possible routes that could be used to reach a destination network. One route is from EIGRP and has a composite metric of 20514560. Another route is from OSPF with a metric of 782. The last is from RIPv2 and has a metric of 4. Which route or routes will the router install in the routing table?
A. the OSPF route
B. the EIGRP route
C. the RIPv2 route
D. all three routes
E. the OSPF and RIPv2 routes
Correct Answer: B
Explanation:
When one route is advertised by more than one routing protocol, the router will choose to use the routing protocol which has lowest Administrative Distance. The Administrative Distances of popular routing protocols are listed below:
QUESTION 9
Refer to the exhibit.
C-router is to be used as a “router-on-a-stick” to route between the VLANs. All the interfaces have been properly configured and IP routing is operational. The hosts in the VLANs have been configured with the appropriate default gateway.
What is true about this configuration?
A. These commands need to be added to the configuration:
C-router(config)# router eigrp 123
C-router(config-router)# network 172.19.0.0
B. These commands need to be added to the configuration:
C-router(config)# router ospf 1
C-router(config-router)# network 172.19.0.0 0.0.3.255 area 0
C. These commands need to be added to the configuration:
C-router(config)# router rip
C-router(config-router)# network 172.19.0.0
D. No further routing configuration is required.
Correct Answer: D
Explanation:
Since all the same router (C-router) is the default gateway for all three VLANs, all traffic destined to a different VLA will be sent to the C-router. The C-router will have knowledge of all three networks since they will appear as directly connected in the routing table. Since the C-router already knows how to get to all three networks, no routing protocols need to be configured.
QUESTION 10
If IP routing is enabled, which two commands set the gateway of last resort to the default gateway? 200-125 dumps (Choose two.)
A. ip default-gateway 0.0.0.0
B. ip route 172.16.2.1 0.0.0.0 0.0.0.0
C. ip default-network 0.0.0.0
D. ip default-route 0.0.0.0 0.0.0.0 172.16.2.1
E. ip route 0.0.0.0 0.0.0.0 172.16.2.1
Correct Answer: CE
Explanation:
Both the “ip default-network” and “ip route 0.0.0.0 0.0.0.0 (next hop)” commands can be used to set the default gateway in a Cisco router.
QUESTION 11
Which two statements about the OSPF Router ID are true? (Choose two.)
A. It identifies the source of a Type 1 LSA.
B. It should be the same on all routers in an OSPF routing instance.
C. By default, the lowest IP address on the router becomes the OSPF Router ID.
D. The router automatically chooses the IP address of a loopback as the OSPF Router ID.
E. It is created using the MAC Address of the loopback interface.
Correct Answer: AD
Explanation:
r120#show ip ospf data
OSPF Router with ID (10.0.0.120) (Process ID 1)
Next, who are the other routers in our area?
Router Link States (Area 1)
Link IDADV RouterAgeSeq#ChecksumLink count
10.0.0.11110.0.0.1116000x8000023A 0x0092B31
10.0.0.11210.0.0.11212460×80000234 0x009CAC1
10.0.0.11310.0.0.1131480x8000022C0x0043993
10.0.0.12010.0.0.1201520x800002400x0046CB1
We can see OSPF Router ID will be used as source of Type 1 LSA. Also the router will chose the highest loopback interface as its OSPF router ID (if available).
QUESTION 12
Refer to the exhibit.
The speed of all serial links is E1 and the speed of all Ethernet links is 100 Mb/s. A static route will be established on the Manchester router to direct traffic toward the Internet over the most direct path available. What configuration on the
Manchester router will establish a route toward the Internet for traffic that originates from workstations on the Manchester LAN?
A. ip route 0.0.0.0 255.255.255.0 172.16.100.2
B. ip route 0.0.0.0 0.0.0.0 128.107.1.1
C. ip route 0.0.0.0 255.255.255.252 128.107.1.1
D. ip route 0.0.0.0 0.0.0.0 172.16.100.1
E. ip route 0.0.0.0 0.0.0.0 172.16.100.2
F. ip route 0.0.0.0 255.255.255.255 172.16.100.2
Correct Answer: E
Explanation:
We use default routing to send packets with a remote destination network not in the routing table to the next-hop router. You should generally only use default routing on stub networks–those with only one exit path out of the network.
According to exhibit, all traffic towards Internet that originates from workstations should forward to Router R1.
Syntax for default route is:
ip route <Remote_Network> <Netmask> <Next_Hop_Address>.
QUESTION 13

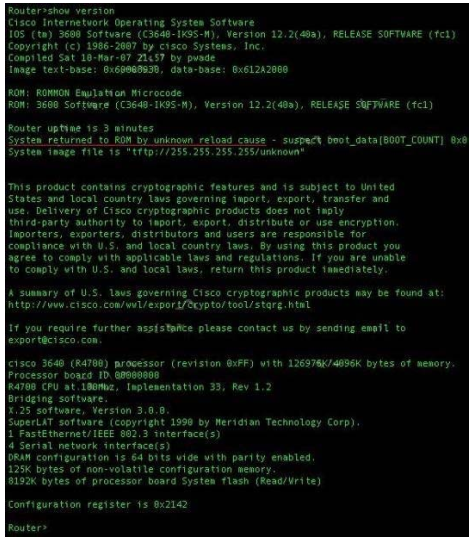

Which command reveals the last method used to powercycle a router?
A. show reload
B. show boot
C. show running-config
D. show version
Correct Answer: D
Explanation:
The “show version” command can be used to show the last method to powercycle (reset) a router.
QUESTION 14
Why do large OSPF networks use a hierarchical design? (Choose three.)
A. to decrease latency by increasing bandwidth
B. to reduce routing overhead
C. to speed up convergence
D. to confine network instability to single areas of the network
E. to reduce the complexity of router configuration
F. to lower costs by replacing routers with distribution layer switches
Correct Answer: BCD
Explanation:
OSPF implements a two-tier hierarchical routing model that uses a core or backbone tier known as area zero (0). Attached to that backbone via area border routers (ABRs) are a number of secondary tier areas. The hierarchical approach is used to achieve the following:
Rapid convergence because of link and/or switch failures ?
Deterministic traffic recovery
?
Scalable and manageable routing hierarchy, reduced routing overhead.
QUESTION 15
Refer to the exhibit.
Which of these statements correctly describes the state of the switch once the boot process has been completed?
A. As FastEthernet0/12 will be the last to come up, it will be blocked by STP.
B. Remote access management of this switch will not be possible without configuration change.
C. More VLANs will need to be created for this switch.
D. The switch will need a different IOS code in order to support VLANs and STP.
Correct Answer: B
Explanation:
Notice the line, which says “Interface VLAN1, changed state to administratively down”. This shows that VLAN1 is shut down. Hence remote management of this switch is not possible unless VLAN1 is brought back up. Since VLAN1 is the only interface shown in the output, you have to assume that no other VLAN interface has been configured with an IP Address.
